The Quality Engineer's Playbook for IATF 16949 Core Tools: APQP, PPAP, and FMEA

Key Takeaways

• The IATF 16949 core tools are five linked methods: APQP, FMEA, the control plan, measurement systems analysis and statistical process control, plus PPAP as the proof package that ties them together.
• Each tool feeds the next, so a weak DFMEA or PFMEA shows up later as a thin control plan and a rejected PPAP.
• The AIAG & VDA FMEA handbook replaced the old risk priority number with Action Priority, so older PFMEAs need a deliberate review rather than a quiet relabel.
• Auditors and customers look for live evidence that the tools are used on the floor, not a binder completed once for launch.

A quality engineer at an Ontario stamping or machining plant usually meets the IATF 16949 core tools in the same week: a new program launch, a customer request for a PPAP, and an auditor asking to see the PFMEA. The tools are not separate chores. APQP, PPAP, FMEA, the control plan, MSA and SPC form one chain of evidence, and the IATF 16949 automotive quality requirements assume that the chain is unbroken from concept to shipment. This playbook walks through the chain in the order a launch team meets it.

Understanding the Core Tools Ecosystem in Automotive Quality

The standard itself points to the core tools through its requirements for product realization, measurement and process control. Customers and certification bodies treat the AIAG manuals as the accepted method for each one. The IATF page on IATF 16949:2016 describes the standard that sits above all of them, and IATF 16949:2016 remains the valid edition today.

The five tools each answer one question:

• APQP answers how a new product moves from concept to stable production, with defined phases and review points.
• FMEA answers what could go wrong in the design and in the process, and what the plant will do about the highest risks.
• The control plan answers how each risk is controlled on the floor, with what gauge, at what frequency and with what reaction.
• MSA answers whether the gauges and methods named in the control plan can be trusted.
• SPC answers whether the process stays stable and capable once parts are running.

PPAP then packages the evidence so the customer can approve the part for production. Tier 2 suppliers face the same chain with fewer layers of review, which is covered in what Tier 2 suppliers must deliver.

Important: An auditor reads the core tools as a linked system. A control plan that does not trace back to a PFMEA, or a PFMEA that ignores a known customer complaint, counts as a gap even when each document looks tidy on its own.

APQP Phase Gates: Structuring Product Development from Concept to Production

APQP organizes a launch into five phases: plan and define the program, product design and development, process design and development, product and process validation, and feedback, assessment and corrective action. Each phase ends with a review in which the team confirms that required outputs exist before the program moves on.

The phase gates matter because they force early decisions. Customer requirements, special characteristics, a preliminary bill of materials and a feasibility review all belong in the first phase, long before tooling is cut. A plant that treats the gates as a formality tends to discover missing capacity or an unmeasurable feature during the validation run, when the fixes cost the most.

A simple way to keep the gates honest is to assign each output to one named owner and review it on a fixed date. The following habits help a launch team stay on track:

• Keep one cross-functional team list with design, manufacturing, quality, purchasing and logistics represented, so no phase is signed off by quality alone.
• Record open items at every gate with an owner and a due date, so the next review starts from facts instead of memory.
• Carry special characteristics forward from the customer drawing into the FMEA, the control plan and the gauge list without renaming them along the way.

Illustrative example: A regional supplier is awarded a new brake component. At the first gate the team notices that the customer drawing holds a tight bore tolerance that the plant's current gauge cannot resolve. Because the issue surfaces before tooling is released, the team schedules a new gauge and an MSA study into the plan instead of finding the problem at launch.

FMEA Integration: Aligning DFMEA and PFMEA Under AIAG & VDA Standards

The AIAG quality resources cover the core tools for North American suppliers, and the harmonized AIAG & VDA FMEA handbook now sets the method many customers expect. It describes a seven-step approach: planning and preparation, structure analysis, function analysis, failure analysis, risk analysis, optimization and results documentation.

The biggest practical change for an existing PFMEA is the move from a risk priority number to Action Priority ratings of high, medium and low. Severity, occurrence and detection are still rated, but the rating table decides whether action is required, instead of a multiplied score. A plant with an older PFMEA should not simply relabel columns. It should rebuild the structure and function analysis, then re-rate the failure modes with the new tables.

Did You Know? The harmonized handbook links the design FMEA and the process FMEA through shared failure modes and effects, so a design characteristic flagged as high severity should appear again as a controlled characteristic in the process FMEA.

The DFMEA and PFMEA should be read side by side. If the DFMEA names a seal groove depth as a safety-related characteristic, the PFMEA should show the process step that creates the groove, the ways it can go wrong and the controls that prevent or detect each one. Gaps between the two documents are among the most common reasons a customer questions a PPAP.

The Control Plan Linkage: Translating Risk Assessments into Shop Floor Action

The control plan is where risk analysis becomes instruction. Clause 8.5.1.1 of IATF 16949:2016 requires a control plan for each site and product supplied, covering the relevant stages from pre-launch through production. Customers usually expect the plan to move through prototype, pre-launch and production phases, with the content growing more specific at each stage.

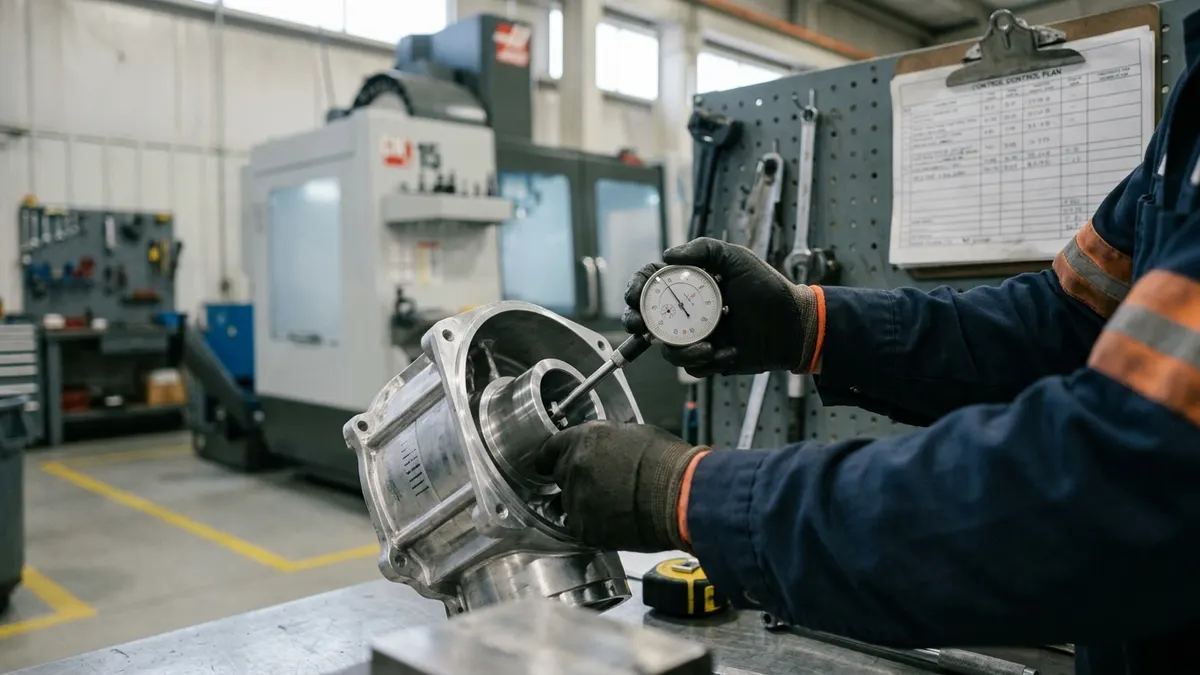

Each line of the control plan should connect to the PFMEA. A strong line names the process step, the characteristic, the specification, the measurement method, the sample size and frequency, the control method and the reaction plan. If an operator finds a part out of specification, the reaction plan tells them exactly whom to call and what to do with the suspect parts.

Three mistakes show up repeatedly when auditors walk the floor:

1. The control plan lists a check that the work instruction does not mention, so operators never perform it.
2. The sample frequency in the plan differs from what the inspection record shows, and no one has approved the change.
3. High-risk PFMEA items have no matching line, which breaks the traceability the customer expects.

Key Consideration: Review the control plan after every change in process, equipment, material or customer complaint. A plan that last changed at launch rarely describes the process running today.

PPAP Submission Levels and Evidence: Building a Flawless Customer Dossier

PPAP is the formal way a supplier shows that its process can consistently produce parts that meet every customer requirement at the quoted rate. The AIAG manual defines up to 18 elements, including design records, the process flow diagram, the PFMEA, the control plan, measurement system studies, dimensional results, material and performance test results, initial process studies and the part submission warrant.

Customers specify one of five submission levels, which control how much evidence is sent and how much is kept at the plant. Level 3, which sends the warrant together with product samples and complete supporting data, is a common default, but the customer's own requirements decide, so the supplier should confirm the level on each program rather than assume it. The customer specific requirements for Ontario automotive suppliers often add portal rules and extra elements.

A clean dossier follows a few rules:

• Use a consistent part number and revision level on every page, so a reviewer never has to guess which drawing a study refers to.
• Match characteristics across documents, so that a dimension on the ballooned drawing appears in the FMEA, the control plan and the dimensional results under the same identifier.
• Submit capability results from a significant production run made with production tooling, gauges and operators, not a hand-picked trial.

Many launch delays trace back to a mismatch between documents rather than a missing one. A short internal review before submission, done by someone outside the launch team, catches most of them.

Sustaining Core Tools Integrity Through Measurement Systems and Statistical Process Control

Approval is the start of the work, not the end. MSA and SPC are the tools that keep the earlier evidence true. Clause 7.1.5.1.1 of IATF 16949:2016 requires statistical studies to analyze the variation present in the results of each type of measuring system named in the control plan. Gauge repeatability and reproducibility, bias, linearity and stability studies are the usual methods.

For SPC, the chart type has to fit the characteristic, and the limits have to come from real process data. A control chart that is filled in but never acted upon is a record of missed signals. Operators need a clear rule for what an out-of-control pattern means, and the reaction plan in the control plan should say who responds.

The VDA Quality Management Center publishes the VDA volumes used by German automakers, and plants that serve those customers often find VDA 6.3 process audit expectations overlapping with these same tools. For Ontario suppliers, the practical lesson is to run internal audits that follow one part through the whole chain: the PFMEA, the control plan, the gauge study, the chart on the floor and the reaction when a point goes out.

Important: Clause 9.2.2.3 of IATF 16949:2016 requires manufacturing process audits to evaluate each process for effectiveness and efficiency, so the core tools should be checked where parts are made, not only in the office.
